The Two Main Types of Solid Center Metal Diaphragms and How They’re Different

Posted by admin on May 06, 2019 03:18 pm | Leave a Comment

Metal diaphragms are specially engineered components that fulfill several critical roles across many industries. Generally nothing more than thin, circular plates, diaphragms help regulate pressure levels in complex machinery systems.

What renders these plates so critical to countless processes is their ability to change their shapes as needed. Diaphragms undergo elastic deformation when subjected to axial loading or pressure, and this allows them to play many different roles.

Typical roles of solid metal diaphragms include:

Regulating pressure
Converting movement into measurable communication with equipment
Creating a physical barrier between opposing forces involving gas and liquid
Acting as a membrane while fluids are pumped
Serving as predictable failure points to protect equipment from the risk of overpressure
Cycling for millions of strokes
Providing reliable performance in corrosive environments and extreme temperatures

Metal diaphragms exist in two main forms: high-sensitivity low-pressure (HSLP) diaphragms and low-sensitivity high-pressure (LSHP) diaphragms. Understanding the differences between the two is crucial to finding the best fit for your applications.

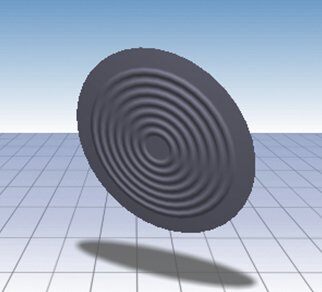

High-Sensitivity Low-Pressure Diaphragms

HSLP diaphragms appear in applications that require the diaphragm to move a significant amount without necessitating a sizable application of pressure. These devices most frequently help with pressure sensor isolation, especially in the food processing and pharmaceutical industries.

Both these industries use HSLP diaphragms to protect fluids from contamination through the use of pressure sensors. These sensors are activated by excess pressure within the system, allowing machinery to automatically channel fluids when the pressure reaches a certain threshold. In food processing and pharmaceutical applications, HSLP sensors allow fluids to advance to the next stage of processing only when they have reached the desired volumes, helping operators precisely control the mixing and processing of various substances.

Many other industries requiring ultra-pure process fluids also take advantage of pressure sensors, and therefore rely on HSLP diaphragms. Some other common applications of these systems include:

- Aerospace instruments like altimeters
- Aneroids for oxygen systems and automatic deployment systems

Low-Sensitivity High-Pressure Diaphragms

LSHP diaphragms best suit applications that require the diaphragm to remain in place even under high pressure. Although they appear less frequently than HSLP diaphragms, they play just as important roles in regulating pressure in fluid-based systems.

LSHP diaphragms especially aid in converting movement into computer-readable communications. They can be calibrated to only open at precise pressures, allowing operators to take accurate measurements throughout their use.

They’re also often implemented as gas–liquid barriers and failure points because they can operate as a last line of defense against overpressure and machine failure. Their abilities to perform well in extreme conditions also make them beneficial to medical device manufacturers, who use LSHP diaphragms to regulate pressure-based equipment.

Low-Pressure High-Value Procurement From Hudson Technologies

At Hudson Technologies, we design a wide range of HSLP and LSHP diaphragms for many applications. We build customizable diaphragms from materials including:
